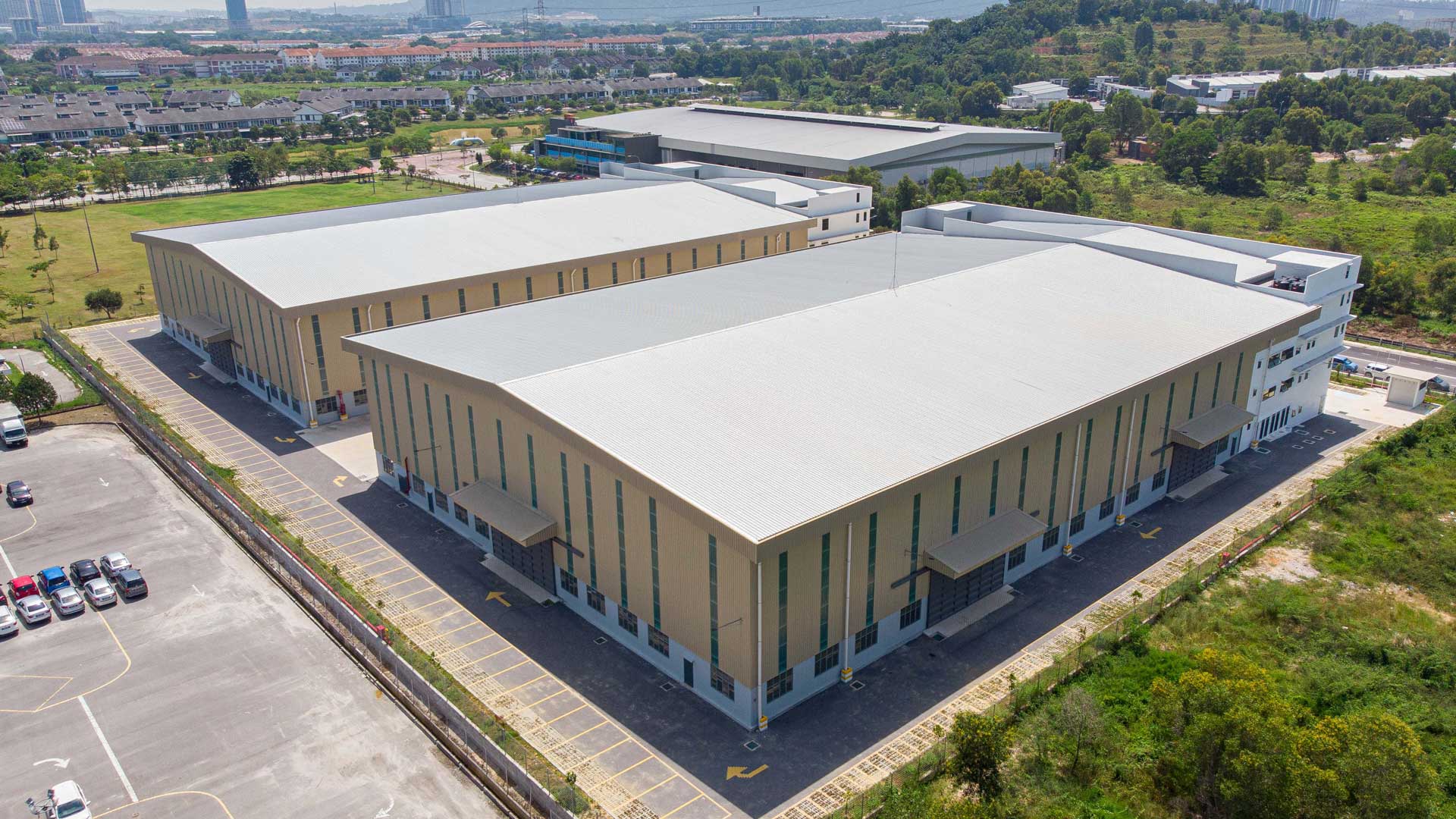

BANDAR BUKIT RAJA, KLANG
CH (Malaysia) Sdn. Bhd.
TENANTED
Block A
Land Details
| Type | Industrial Building |
|---|---|
| Address | No. 2, Jalan Astana 3/KU2, Bandar Bukit Raja, 41050, Klang, Selangor |
| Property Title No.136 | 138602 |
| Daerah – Klang, Selangor | |
| Mukim – Kapar | |
| Land Area | 17,809.00 m2 (Total approx. 4.4 acres) |
| Ground floor (Factory & Warehouse) | 4502.77 m2 |
| Ground floor (Office) | 222.24 m2 |
| First floor (Office) | 345.62 m2 |
| Second floor (Office) | 766.33 m2 |
| Third Floor (Office) | 685.62 m2 |
| Guard House/Refuse Chamber/TNB & MSB Room | 44.25 m2 |
| Covered Area | 6566.83 m2 (Approx. 70,691.92 sq. ft.) |
| Additional Covered Area | 749.33 m2 (Approx. 8066.54 sq. ft.) *Cover Area for roof joining warehouse A & B |
| Total Covered Area | 7316.16 m2 (Approx. 78,758.46 sq. ft.) |
Building Facilities
- Entrance : Steel gate with wiring only (Auto gate by tenant)
- Telephone : Incoming DB connected to high riser on every floor
- Fire Fighting : Equipment with hose reel, hydrants and pump house with sprinklers and fire extinguishers
- Eaves Height : 12m
- Loading Bay : 6 units with dock leveller
- Floor Loading : 5000kg/m2 (Warehouse) & 3000kg/m2 (Concrete area outside the building)
- Floor Flatness : Category 2 (floor profile measurement using Dipstick)
- Air Conditioning : Electrical points and condensate pipes only
- Electricity Supply : Incoming 1200 amps
- Lift : Passenger lift for 5 people to every floor
Contact
Block B
Land Details
| Type | Industrial Building |
|---|---|
| Address | No. 2, Jalan Astana 3/KU2, Bandar Bukit Raja, 41050, Klang, Selangor |
| Property Title No. | 138602 |
| Daerah – Klang, Selangor | |
| Mukim – Kapar | |
| Land Area | 17,809.00 m2 (Total approx. 4.4 acres) |
| Ground floor (Factory & Warehouse) | 4501.74 m2 |
| Ground floor (Office) | 296.75 m2 |
| First floor (Office) | 537.69 m2 |
| Second floor (Office) | 854.17 m2 |
| Third Floor (Office) | 773.46 m2 |
| Guard House/Refuse Chamber/TNB & MSB Room | 44.25 m2 |
| Covered Area | 7008.06 m2 (Approx. 75,441.76 sq. ft.) |
| Additional Covered Area | 749.33 m2 (Approx. 8066.54 sq. ft.) *Cover Area for roof joining warehouse A & B |
| Total Covered Area | 7757.39 m2 (Approx. 83,508.30 sq. ft.) |
Building Facilities
- Entrance : Steel gate with wiring only (Auto gate by tenant)
- Telephone : Incoming DB connected to high riser on every floor
- Fire Fighting : Equipment with hose reel, hydrants and pump house with sprinklers and fire extinguishers
- Eaves Height : 12m
- Loading Bay : 6 units with dock leveller
- Floor Loading : 5000kg/m2 (Warehouse) & 3000kg/m2 (Concrete area outside the building)
- Floor Flatness : Category 2 (floor profile measurement using Dipstick)
- Air Conditioning : Electrical points and condensate pipes only
- Electricity Supply : Incoming 1000 amps
- Lift : Passenger lift for 5 people to every floor
Contact

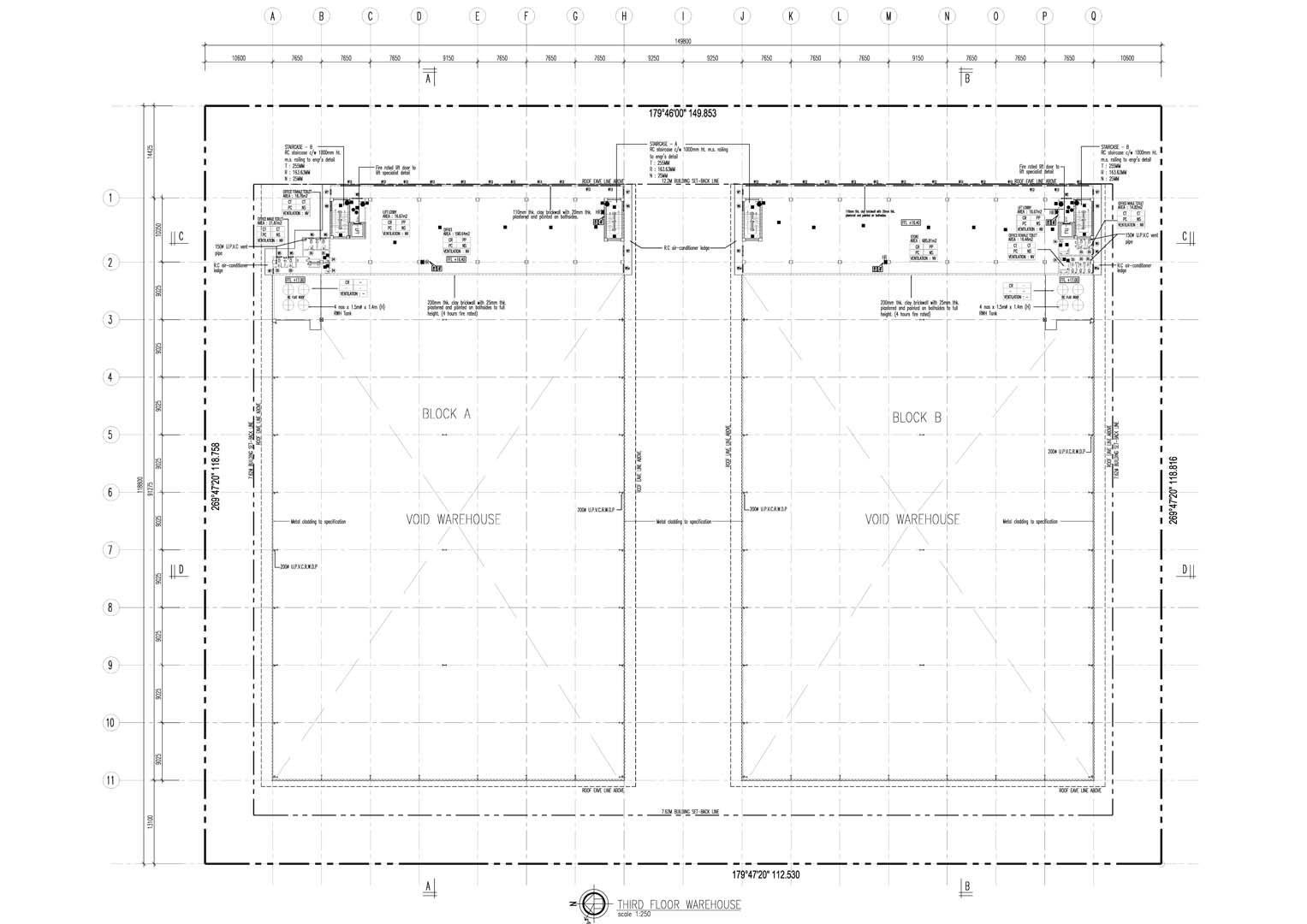

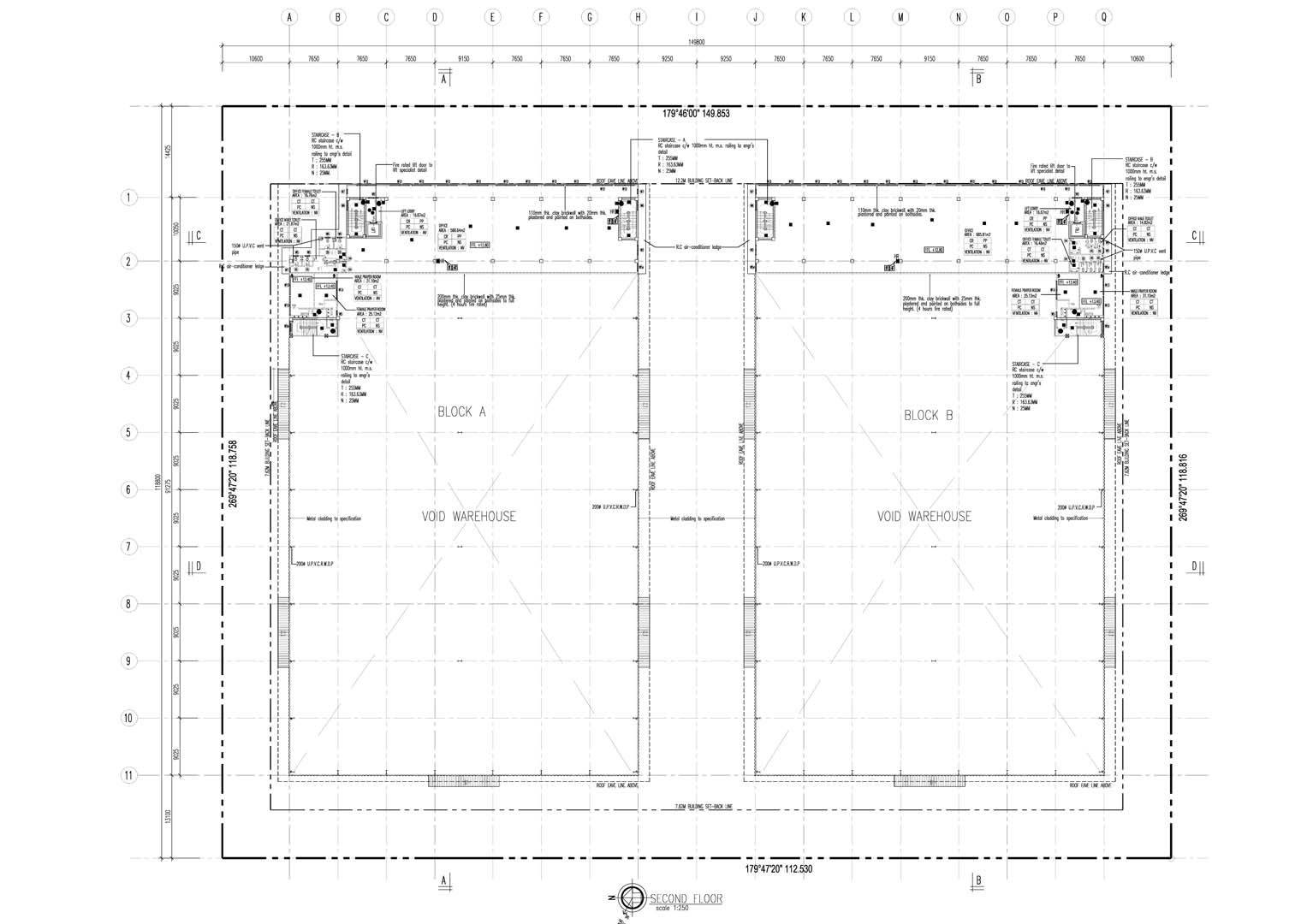

Building Layout

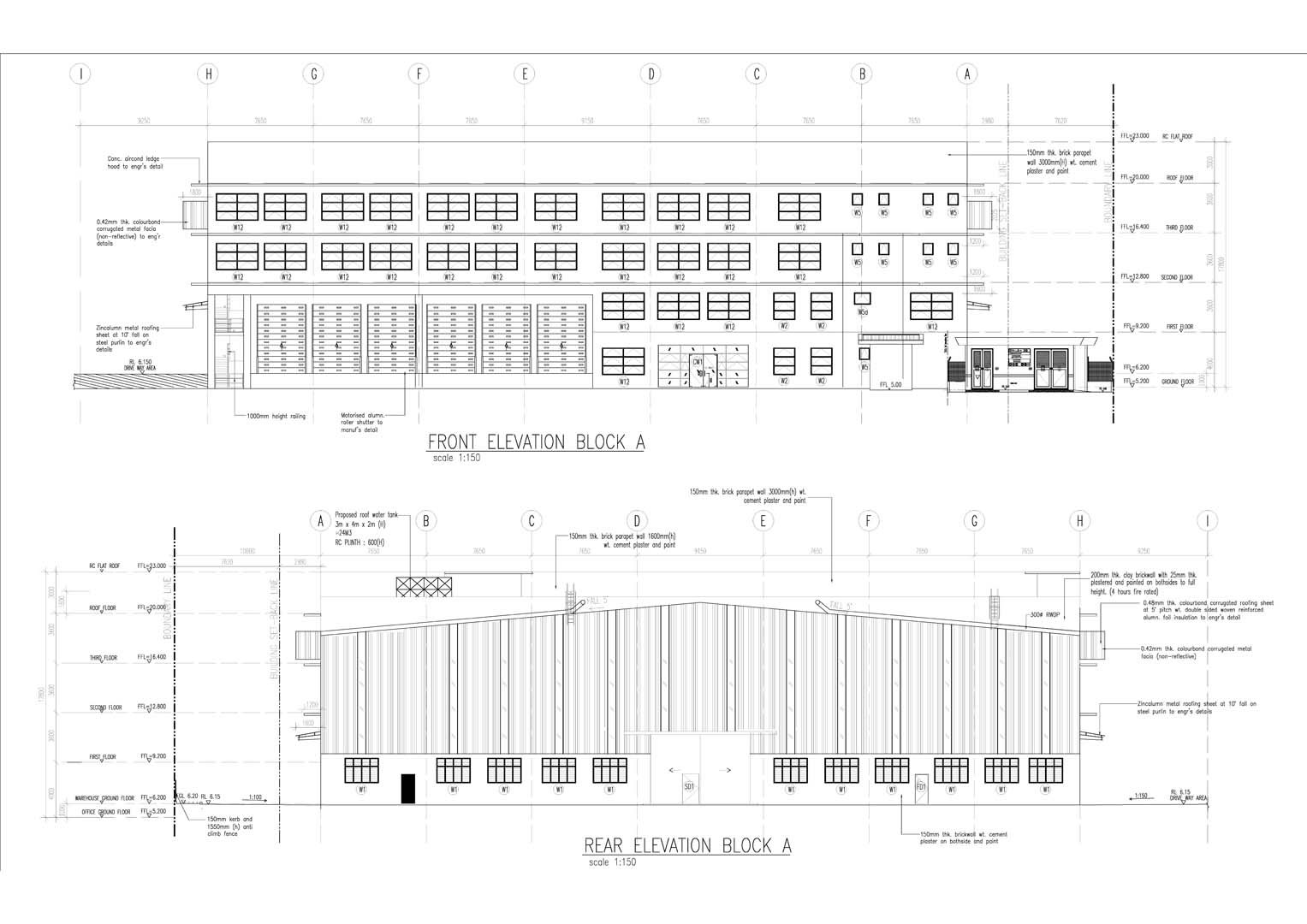

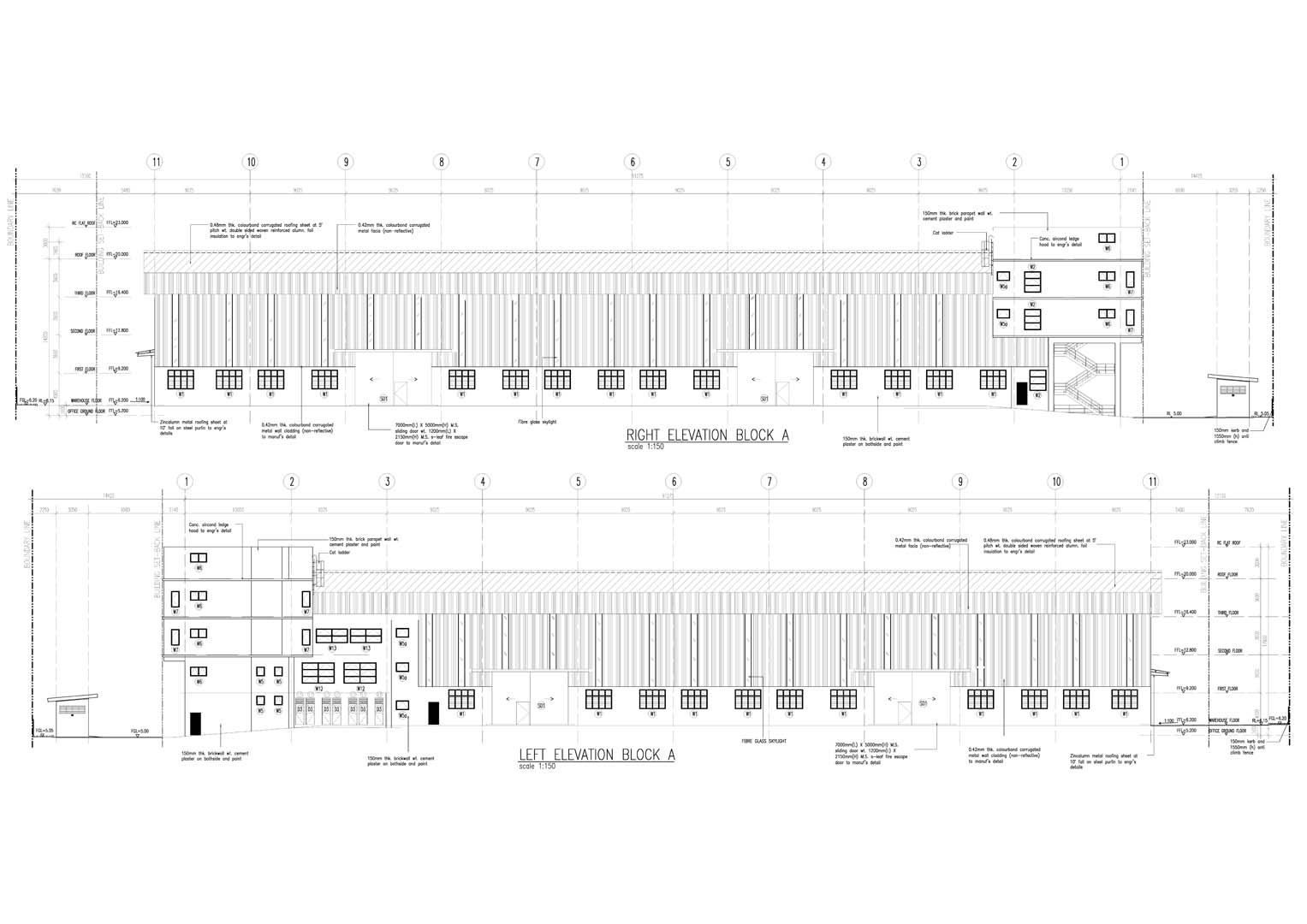

Block A
Previous
Next

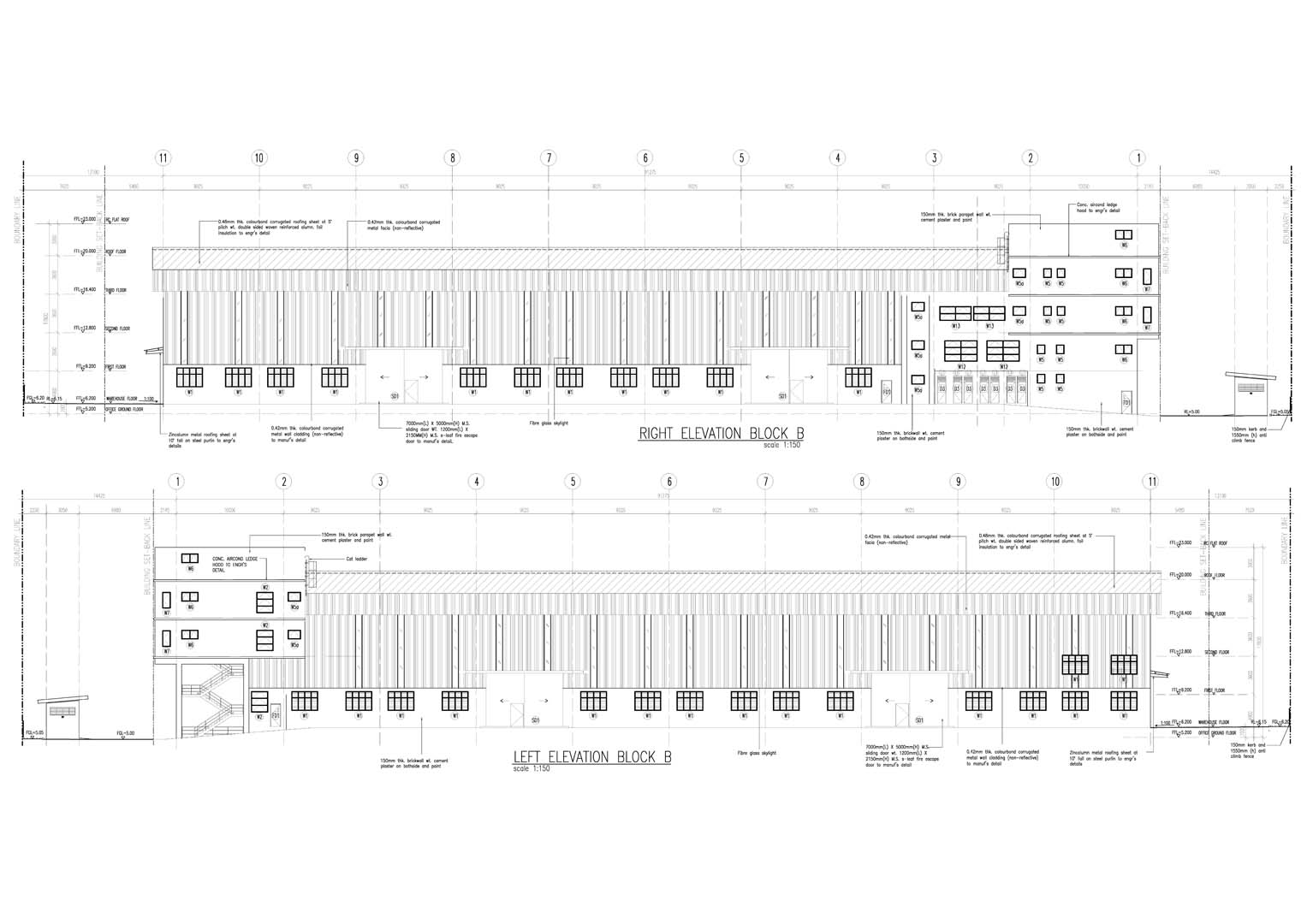

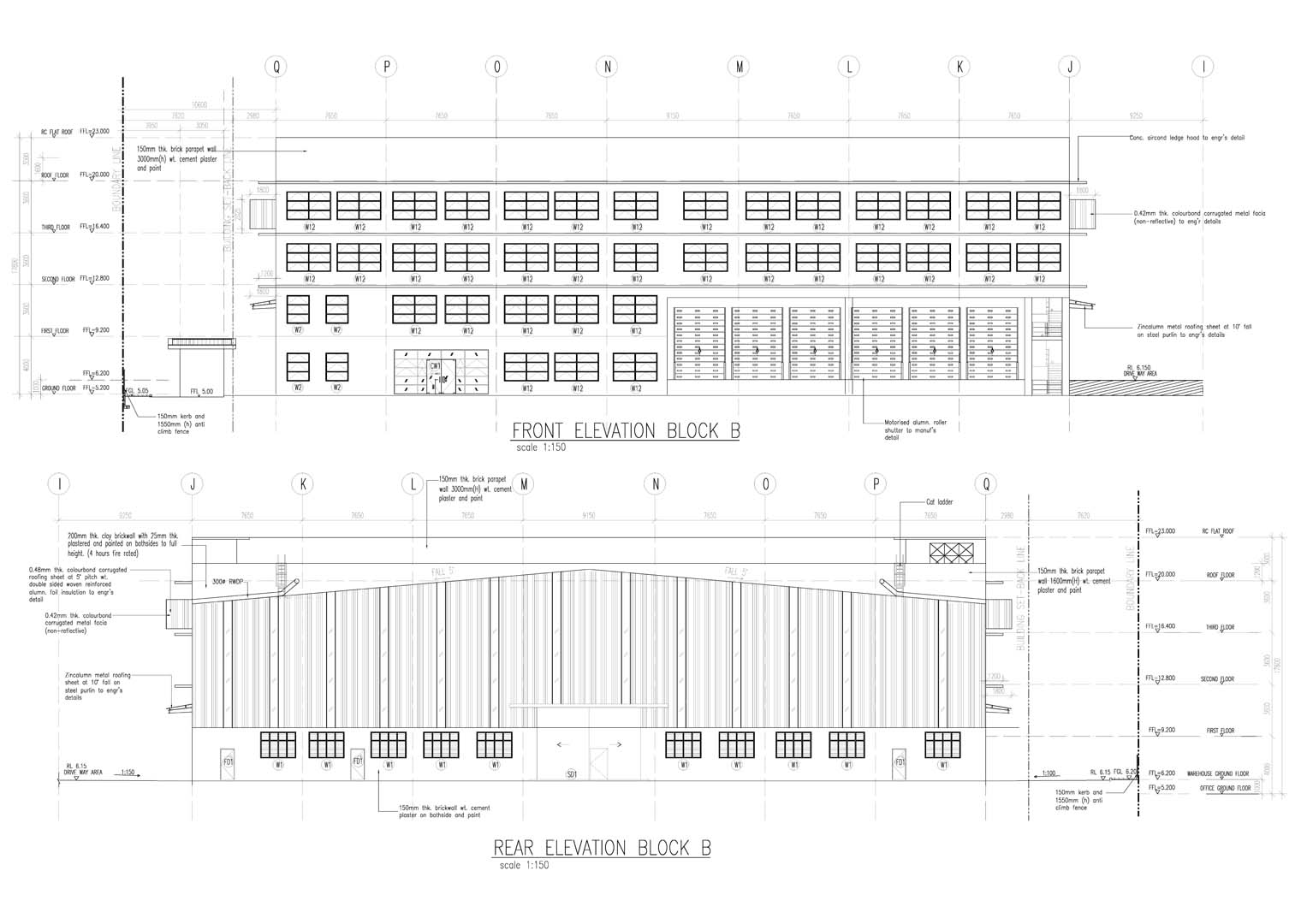

Block B
Previous
Next
